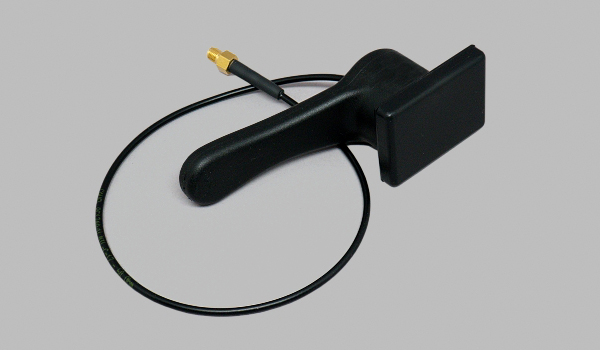

UHF RFID Handheld antenna

This antenna helps identify small UHF RFID tags from a short distance. The antenna has a narrow radiation pattern that allows for accurate tag identification without unnecessary interference. UHF RFID handheld antenna is produced in frequency range 865-868MHz and 902-928MHz.

According to your requirements, we can modify the cable length, and connect a suitable connector.  Create. a new design according to your specifications. If you have any questions, please do not hesitate to contact us.

UHF RFID micro handheld antenna

                        ⊕ Click to expand

DescriptionOrder numbers

Frequency: 865 – 868 MHz
902 – 928 MHz
Polarized antenna: Linear
Gain: 0 dBi
Read Range: Up to 30mm depending on UHF RFID tag
VSWR: < 1.4
Impedance: 50 Ohm
Dimension: Antenna 38mm x 45mm, Total 115mm x 38mm x 50mm,
Cable: RG174, Length 30cm
IP Classification: IP 67
Operating Temperature: -20°C + 70°C
Material: Glass fiber technopolymer + ABS
Applications: Short-range identification of UHF RFID tags


H86-HHA-SMA30: UHF RFID near field antenna, frequency 865 – 928 MHz, SMA (F)
H92-HHA-SMA30: UHF RFID near field antenna, frequency 902 – 928 MHz, SMA (F)
