UHF RFID Antenna H86-AD-AL

UHF RFID  slot antennas are produced in two frequency ranges: 865-868MHz and 902-928MHz.

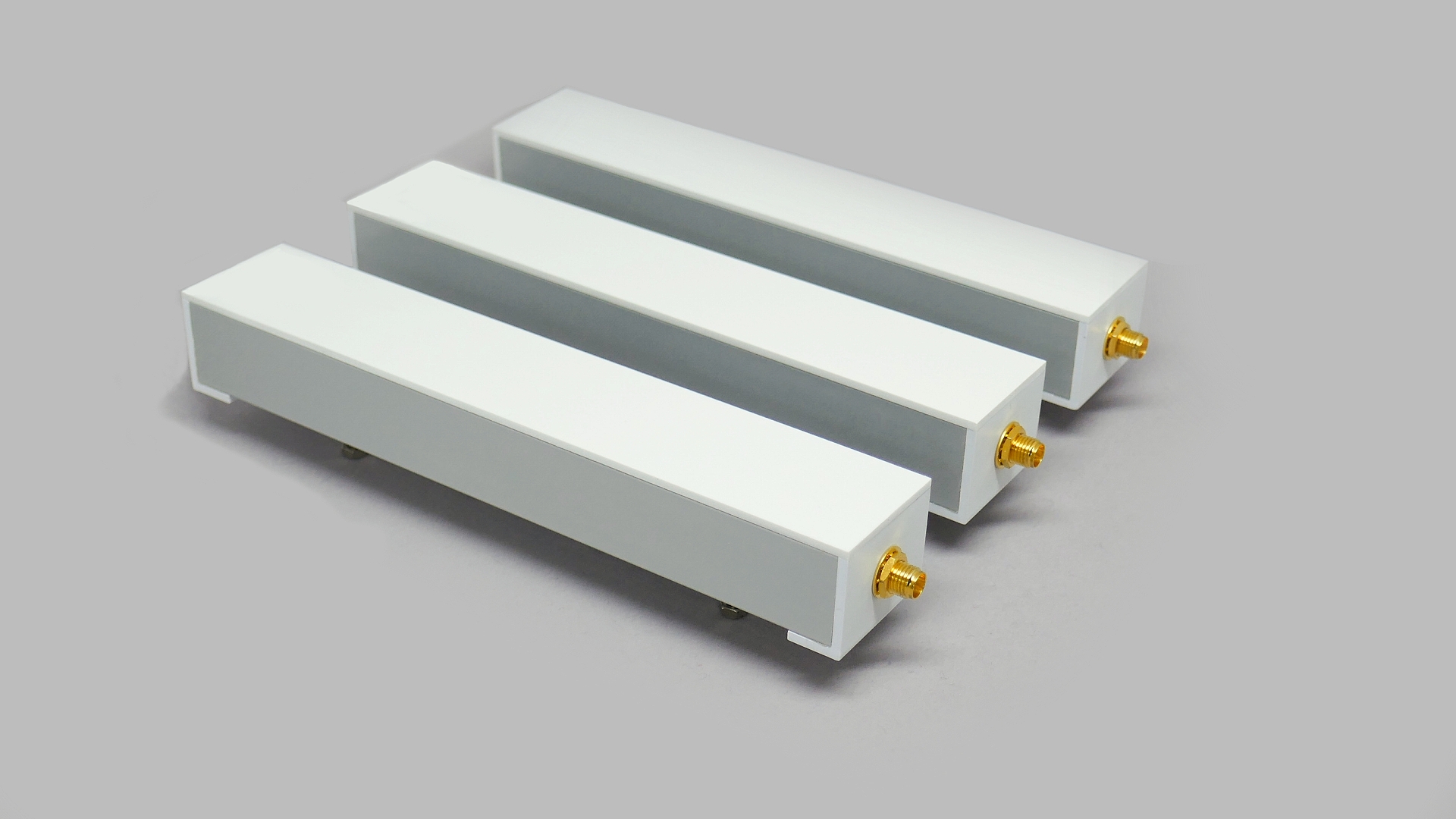

These antennas are primarily suitable for applications with a short reading distance and where precise identification is required. The UHF RFID antenna H86(92)-AD-AL is embedded in an aluminum enclosure and has a narrow radiation pattern, allowing for the accurate identification of tags.

We have developed and produced UHF Near-Field tags specifically for these antennas, making them perfect for short and middle-range applications. Please take a look at our range of UHF Near-Field tags.

Follow us on Twitter

Industry UHF RFID antenna

                        ⊕ Click to expand

DescriptionOrder numbers

Frequency: 865 – 870 MHz
Polarized antenna: Linear
Gain: 2dBi
VSWR: < 1.5
Impedance: 50 Ohm
Dimension: 164mm x 30mm x 24mm
IP Classification: IP 65
Operating Temperature: -25°C + 80°C
Material: Aluminium + PP
Applications: Suitable for UHF RFID solutions with a reading distance up to 1,5m/2W ERP (4W EIRP)


H86-AD-AL-SMA: EU frequency range 865-868MHz, SMA female connector
H92-AD-AL-SMA: US frequency range 902-928MHz, SMA female connector
