DescriptionOrder numbers
| Frequency: | 865 – 928 MHz |
| Type: | EPC Class1 Gen 2 |
| Chip: | Monza 4QT or NXP U Code7 |
| Temperature Resistance – Hot Steam: | Max 200°C/24 hours |
| Temperature Resistance – Dry Environment | Max 280°C/12 hours |
| Temperature peak: | 300°C/60 minutes |
| Dimension (L x W x H): | 75mm x 30mm x 4mm |
| Housing: | High-quality composition |
| Attachment Method: | By screws |
| Applications: | Petrochemistry, Oil Production, Chemical Industry, Engineering Industry etc |

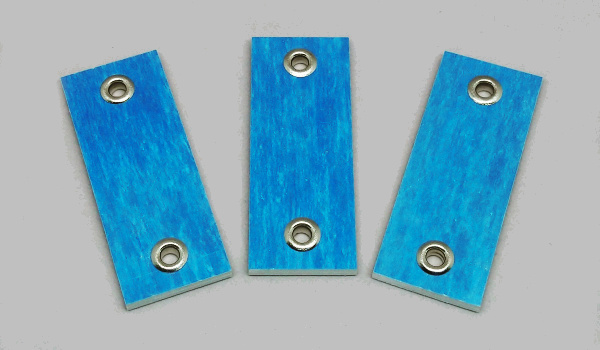

| H86-WL-TeT-NXP-75×30 | Heat Resistant Tag up to 280°C, hot steam up to 200°C/24 hours, chip NXP |
| H86-WL-TeT-4QT-75×30 | Heat Resistant Tag up to 280°C, hot steam up to 200°C/24 hours, chip Monza 4QT |
