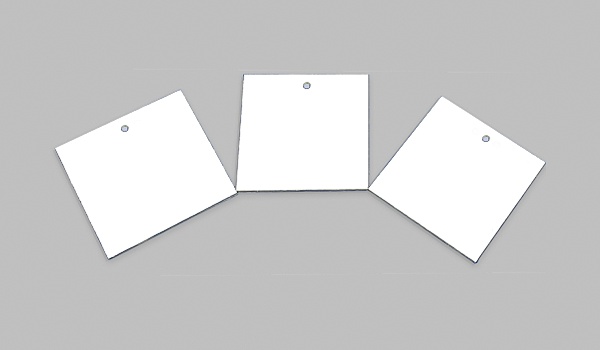

UHF RFID heat resistant ceramic tag (suitable for soldering lines)
The H86-CS UHF RFID ceramic tags are designed to efficiently monitor production processes and control the effectiveness of soldering lines. After rigorous testing, our customers have confirmed that these tags boast a lifetime of approximately 2000 soldering cycles.
This tag is also very suitable for other dry environment applications and can withstand short-term temperature peaks up to 350°C. The ceramic surface is specially formulated to ensure that no particles separate from the tag, preventing contamination during soldering processes.
⊕ Click to expand
DescriptionOrder numbers
| Frequency: | 865 – 928 MHz |
| Type: | EPC Class1 Gen 2 |
| Chip: | Impinj Monza 4QT |
| Temperature peak: | 300°C / 45 minutes, 320°C / 30 minutes, |
| Dimension (L x W x H): | 51mm x 51mm x 3mm |
| Housing: | Ceramic material |
| Applications: | Soldering lines, Industry Dryers, etc |
| H86-CS-T300/45 | UHF RFID ceramic heat resistant tag up to 350°C, dry environment |
