H86-KX-LED-3917

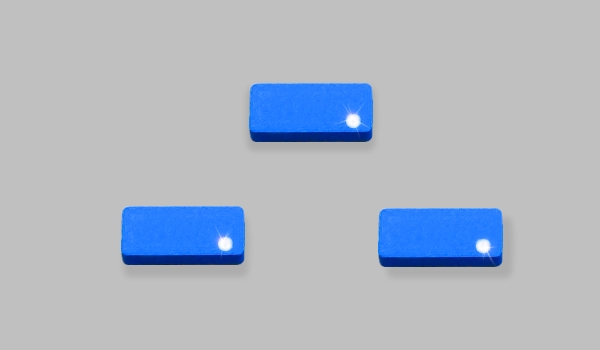

Standard LED Tag (P/N: H86-KX-LED-3917)
The passive UHF RFID LED tag offers a reliable, standard solution commonly used across various industries. It’s perfect for applications requiring a dependable and cost-effective tagging solution.
Specialized LED Tag with External Antenna (P/N: H86-KX-Ant)
For more demanding applications, our specialized LED tag features an external antenna, ensuring enhanced performance in challenging environments. This design is particularly suited for industries requiring robust and precise tagging capabilities.
In our production lineup we also have the version with an embedded dual antenna, please see out product H86-KX-LED-7920.
⊕ Click to expand
H86-LX-LED
How does a UHF RFID LED Tag work?
UHF RFID LED tags work like standard RFID tags — you can identify them and read the EPC with any UHF RFID reader. But they do more: send a command tied to the tag’s unique TID, and its LED flashes on demand. One command equals one flash, so you control the blink count. Only the selected tag lights up — perfect for quickly locating items in dense RFID environments. Need continuous flashing? In this case, UHF RFID BAP LED tags are a suitable solution.
| Frequency: | 865 – 928 MHz |
| Type: | EPC Gen 2 , ISO-IEC 18000-6 |
| Chip: | KX2005X-BL |
| Temperature range: | -20°C + 60°C |
| Memory: | EPC 128 bits, one tome coding |
| User memory: | 1312 bits |
| Color : | Black or Blue |
| Dimension (L x W x H): | 39 mm x 17 mm x 6 mm |
| Housing: | ASA |
| Fixing: | Adhesive back side 3M 487 or VHB |
| H86-KX-LED-3917 | UHF RFID with LED function |
