UHF RFID Micro tag

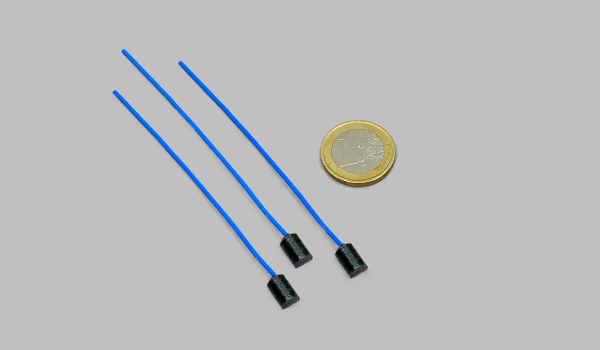

This UHF RFID micro tag with flexible antenna was developed in response to the need for a compact RFID solution suitable
for integration into automation systems and security equipment. It can be built directly into a circuit board, with the antenna length adapted to allow direct connection to circuits or to an external antenna integrated into the PCB as a separate layer
or similar configuration.
The tag operates in the UHF frequency range of 860–960 MHz, making it suitable for global RFID applications. Depending on the chip variant, the following memory configurations are available:
-
Monza R6: 96-bit EPC, no user memory
-
UCODE 9: 96-bit EPC, no user memory
-
Impinj M700 series (e.g., M730/M750): up to 128-bit EPC, 32-bit or 96-bit user memory
-
Impinj M800 series (e.g., M830/M850): up to 128-bit EPC, 32-bit or 96-bit user memory
This tag is ideal for space-constrained environments and is suitable for a wide range of RFID applications.
⊕ Click to expand
| Frequency: | 865 – 928 MHz |
| Type: | EPC Class1 Gen 2 |
| Chip: | Impinj Monza R6 or NXP U-CODE9 |
| Read Range: | Up to 50cm / 2W ERP |
| Operating Temperature: | –20 + 80°C |
| Dimension: | Body 8mm x 5mm x 4mm, antenna 6cm |
| Material: | ABS or Carbon fibres |
| Applications: | Robotics, Factory Automation, Healthcare |
| H86U-MT-FXA-60: | UHF RFID Near Field Tag with Flexi Antenna For All Surfaces, Frequency 865-928MHz |
| MT-FXA holder: | Holder of H86U-MT-FXA-60 |
